Durable, easy-to-use Gaussmeter for something different

The GM07 is our entry level Gaussmeter. With a Transverse Hall Probe as standard, the GM07 is suited to a wide range of applications where there is no requirement to export data from the Gaussmeter.

DC accuracy of better than ±0.5% standard probe and Gaussmeter
Standard sensitivity Transverse Hall probe included
Range of Axial, Transverse, High Sensitivity and Fluxgate probes available to allow and extremely wide range of measurement
Visible sensor point on probe
Intuitive menu set-up with non-volatile memory
Store measurements, up to 100 at a time
Dot matrix display with menu driven functions
Powered by 4x AA cells
UK Delivery: 5 to 7 working days from purchase
EU and Rest of World Delivery: 7 to 10 working days from purchase

With a Hirst Gaussmeter, you can rely on a product that has been developed with durability, precision and usefulness as core qualities. The GM07 is robust enough for rugged shop floors and accurate enough for laboratory use. With a one year guarantee and calibration certificate included, the GM07 Gaussmeter is ready to use and simple to operate.

Some example applications include:

Computer disk Drive Actuators
Loudspeaker Air Gaps
Electric Motor air gaps
Magnetic ‘strength’ testing for food industry separators
Spot checking magnetic field strength for Non-destructive testing (magnetic particle inspection)
Verifying compliance with IATA, IACO and FAA regulations on magnetism from packages to be shipped by air with AFG100 Fluxgate probe
Non destructive Testing (Magnetic) with Robust option TP002R
Goods inward and Quality Assurance Inspection
Magnet calibration
Transformer Stray Field measurements

The GM07 is ideal for a wide range of applications. If you do not see your desired application on the list, or to ensure the GM07 is right for you, please do not hesitate to contact us.

The GM07 is a basic version of the GM08 Gaussmeter. Without external connectivity or the ability to connect to PC, the GM07 is a hand-held Gaussmeter with a wide range of functions and applications at great value.

The GM07 comes with the TP002 Transverse Hall Probe, however, you may need an additional probe to suit your application. See our range of transverse and axial probes here.

Full Measurement Ranges

Normal Sensitivity Probe TP002 (supplied) AP002 (option)	High Sensitivity Probe TP002HS (option) AP002HS (option)	Fluxgate Probe AFG100 (option)	Tesla	Gauss	Amp/m	Oersted
Range 1			3.000 T	30.00 kG	2388 kA/m	30.00 kOe
Range 2			300.0 mT	3.000 kG	238.8 kA/m	3.000 kOe
Range 3	Range 1		30.00 mT	300.0 G	23.88 kA/m	300.0 Oe
Range 4	Range 2		3.000 mT	30.00 G	2.388 kA/m	30.00 Oe
	Range 3		300.0 µT	3.000 G	238.8 A/m	3.000 Oe
		Range 1	99.99 µT	999.9 mG	79.60 A/m	999.9 mOe
		Range 2	9.999 µT	99.99 mG	7.960 A/m	99.99 mOe
		Range 3	999.9 nT	9.999 mG	796.0 mA/m	9.999 mOe
		Range 4	99.99 nT	999.9 µG	79.60 mA/m	999.9 µOe

Accuracy

With Hirst products, you can expect excellent reliability and accuracy. During manufacture, the accuracy of nuclear magnetic resonance is used to determine the irregularities and non conformities of the GM07 and GM08 with the Hall Probe. This is stored and used mathematically to automatically correct readings taken by the GM07 and GM08. This enables very linear and accurate measurements to be obtained. Every GM07 and GM08 comes with a certificate of calibration valid for one year.

Repeatability	±0.1%	Margin for change over repeated measurements
Traceability	±0.8%	Calibrate to standards traceable to the National Physical Laboratory
Accuracy	±0.5%	Margin of difference from true reading, probe AND Gaussmeter

Express Service

* Please note that our express service does not include the standard shipping prices which will be invoiced separately. This service is to cover the cost of expediting the manufacturing process and dispatching to you within 48 hours. This service is subject to stock and availability at the time of purchase. Please contact us before using this service to ensure availability.

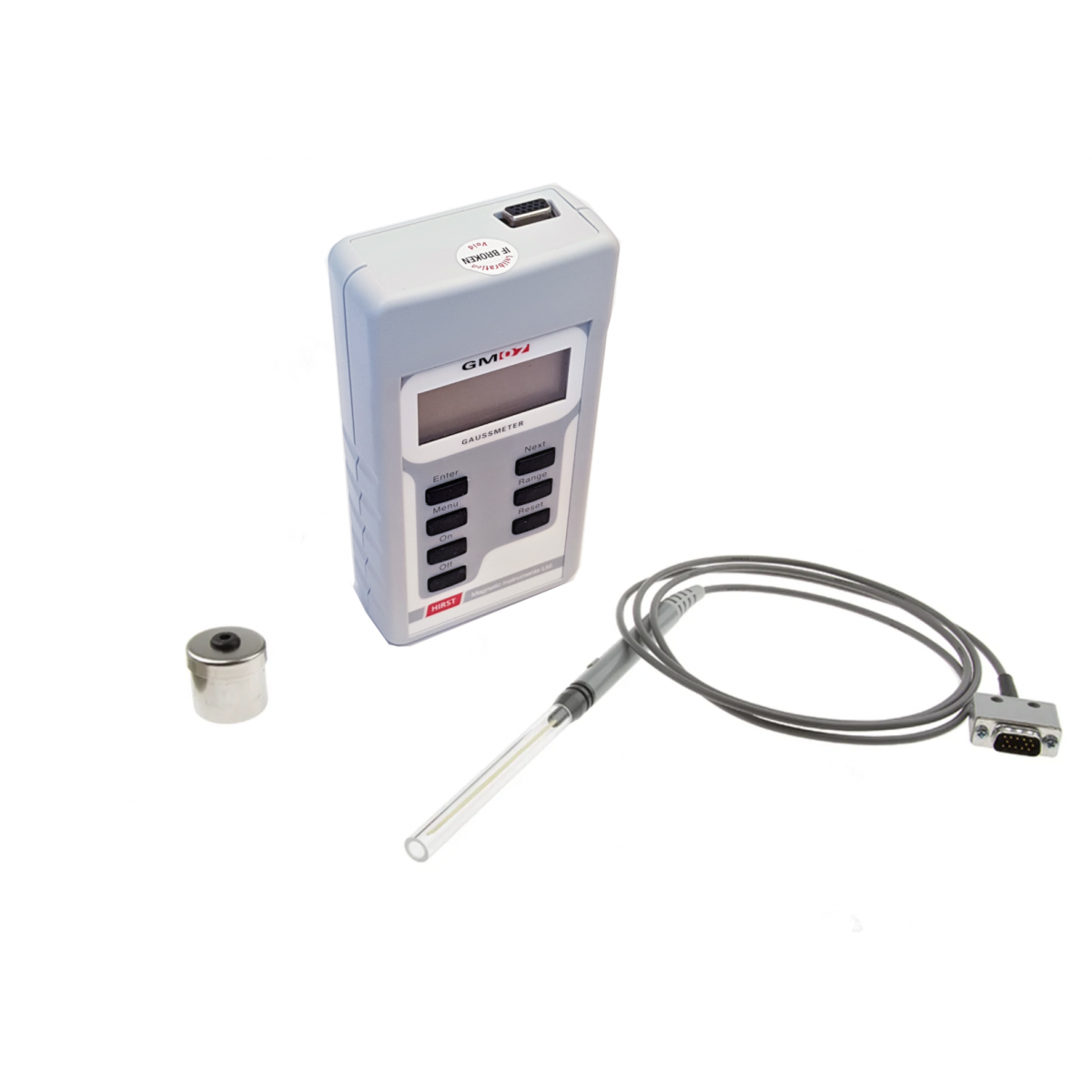

Meter
Standard Transverse Hall Probe
Probe protection
Zero Flux Can
Calibration Certificate

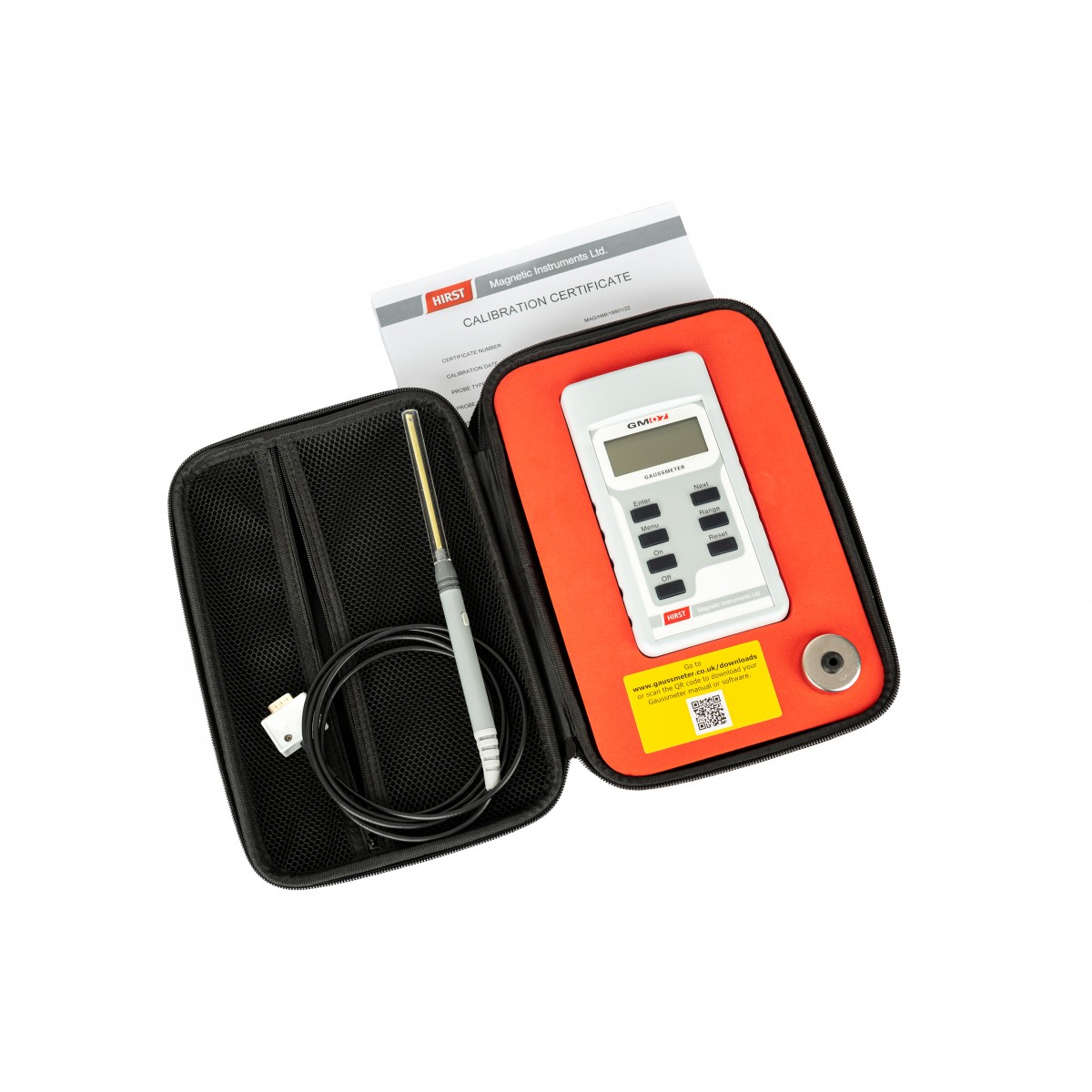

Case

Accuracy
Repeatability	±0.1% Margin for change over repeated measurements
Traceability	±0.8% Calibrated to standards traceable to the NPL National Physics Laboratory (UK)
Accuracy	±0.5% Margin of difference from true reading, probe AND Gaussmeter.
Full Specifications
Frequency Range	DC and 15 Hz to 10 kHz (-1%)
Display Rate	3 readings per second
Functions	DC, DC Peak, AC RMS, AC Peak, AC Max
Contact Time	100 milliseconds (average)
Display	Dot Matrix Graphics LCD
Memory Type	Non-volatile
Temperature Coefficient	Better than ±0.1% of reading/ºC including probe
Battery Type	4x AA cells longlife, 1.5V Alkaline (not supplied)
Optimum Operating Temperature	0ºC – 50ºC (30ºF - 125 ºF)
Optimum Storage Temperature	20ºC – 70ºC (70ºF – 150ºF)
Language Modes	English, French, Spanish, Italian, Portuguese, German
