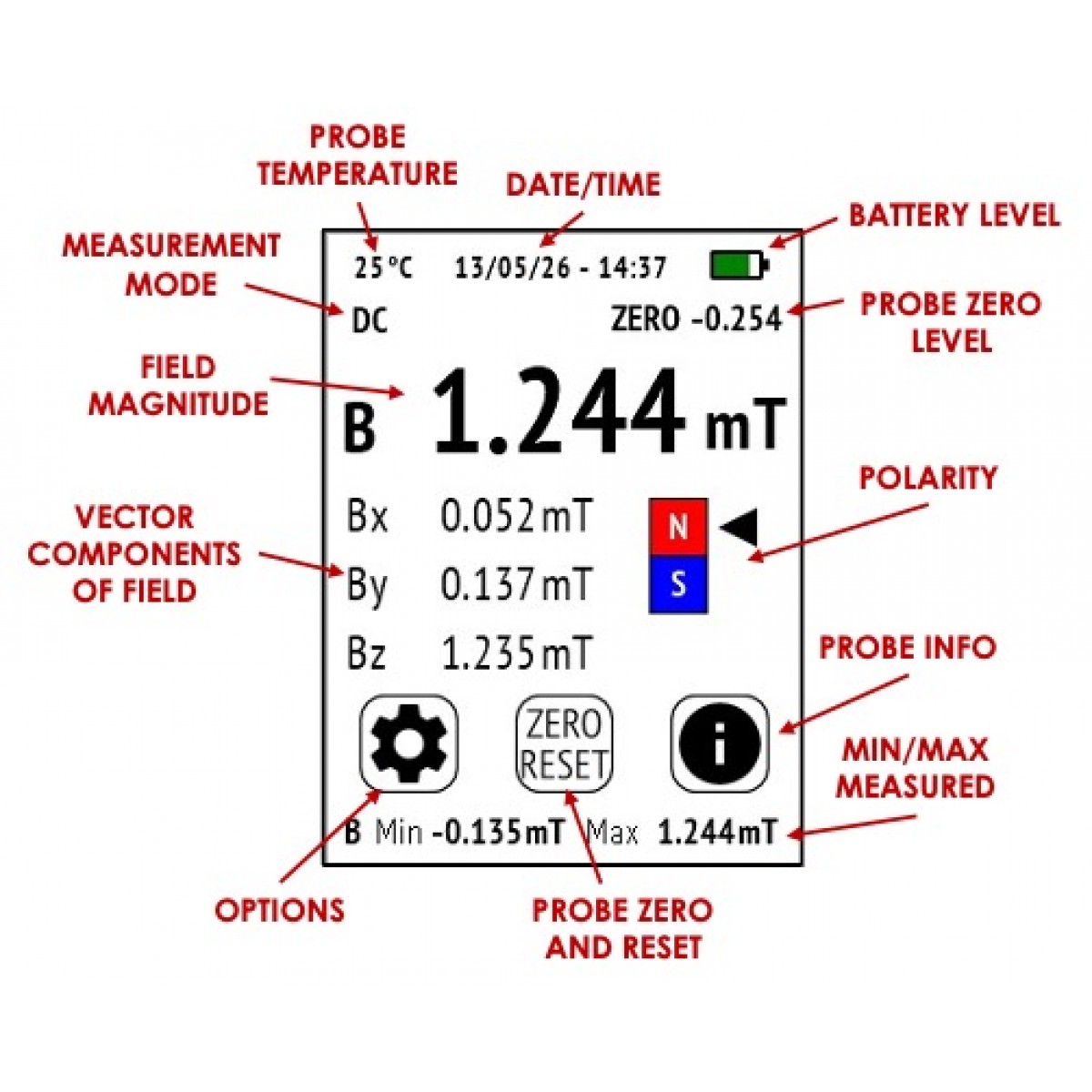

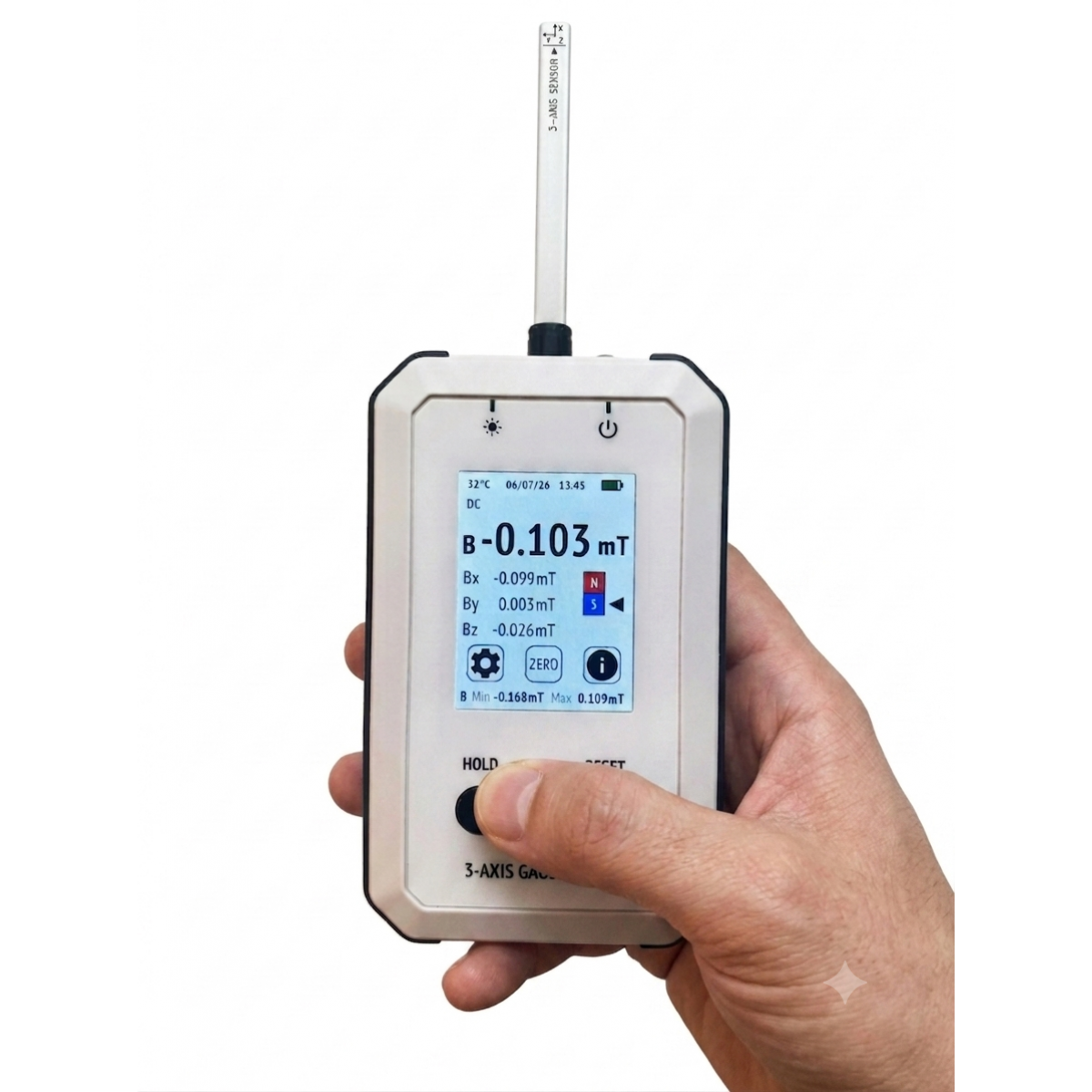

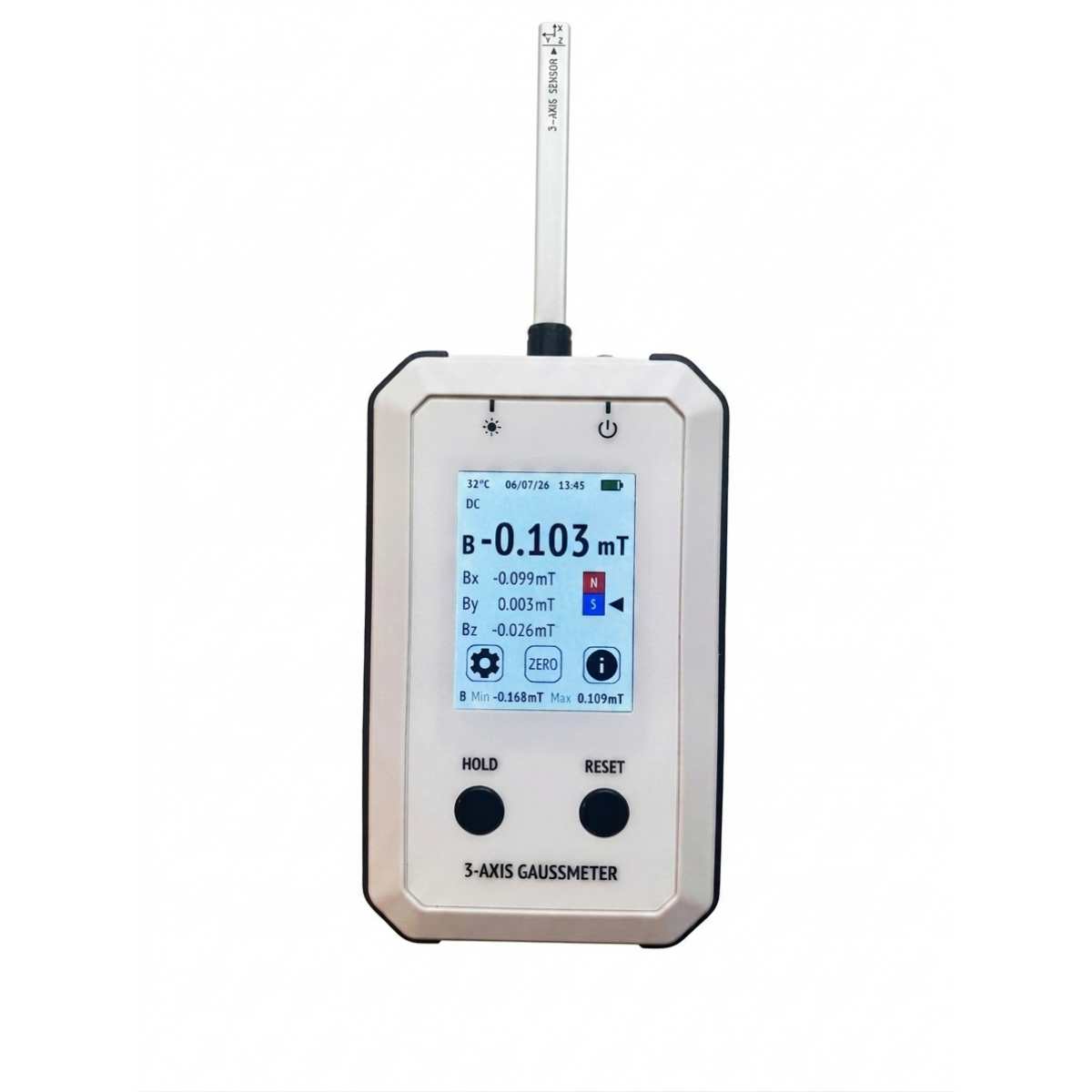

The GML9-3 is a battery (replaceable) powered gaussmeter with an integrated probe containing a three-axis Hall sensor. The simple easy to use two-button interface covering the most often used day to day measurement functions (measurement Hold and Reset the minimum and maximum reading) with other functions and settings accessible via setting icon from the 2.4” resistive colour touch screen display (can be used with gloves). The meter displays the total field magnitude B as well as the x, y, z components of the field in DC, AC-RMS or AC-Peak modes.
Key features
- Hand-held touch-screen general purpose 3-axis gaussmeter (for determining magnetic field strength)

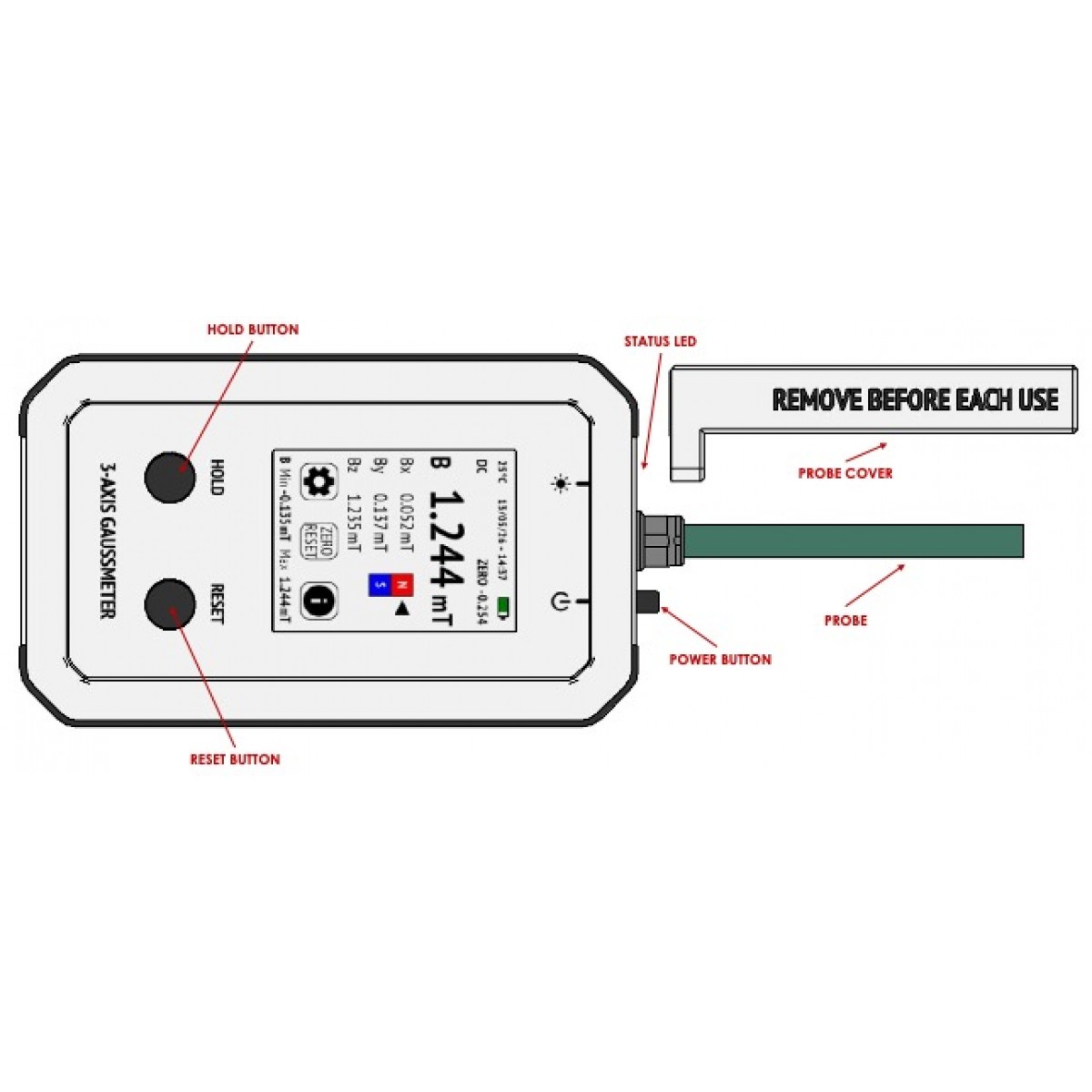

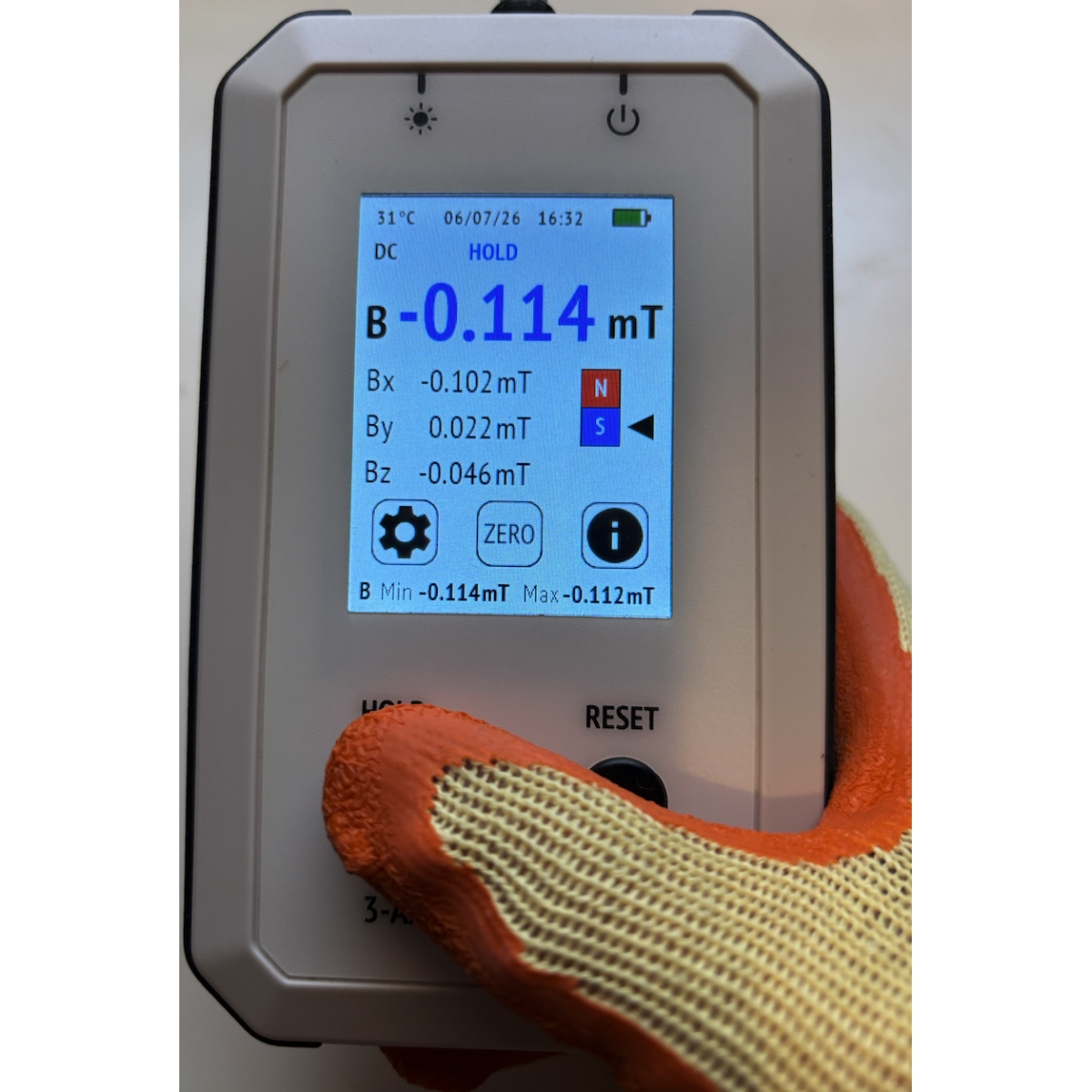

- The simple easy to use two-button interface covering the most often used day to day measurement functions (measurement Hold and Reset the minimum and maximum reading) with other functions and settings accessible via setting icon from the 2.4” resistive colour touch screen display (can be used with gloves)

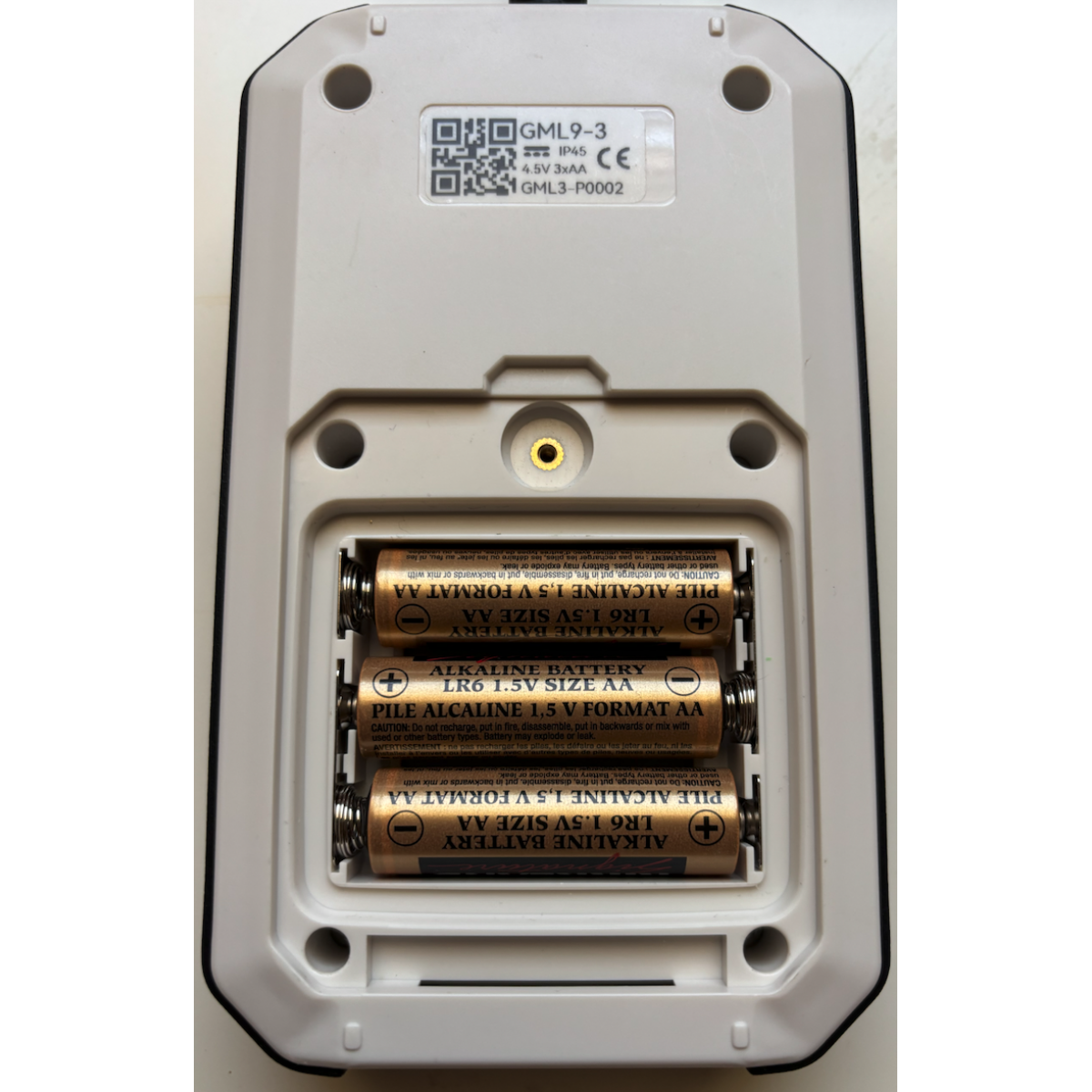

- Battery powered (3 x AA)
- Intuitive easy to use menus with dedicated knowledge base support website.
Applications
- Magnet polarity measurements
- Magnet strength testing
- Goods inward and Quality Assurance
The GML9-3 kit contains:-
- GML9-3 Three axis gaussmeter with integrated probe.
- Probe cover.
- Calibration certificate.

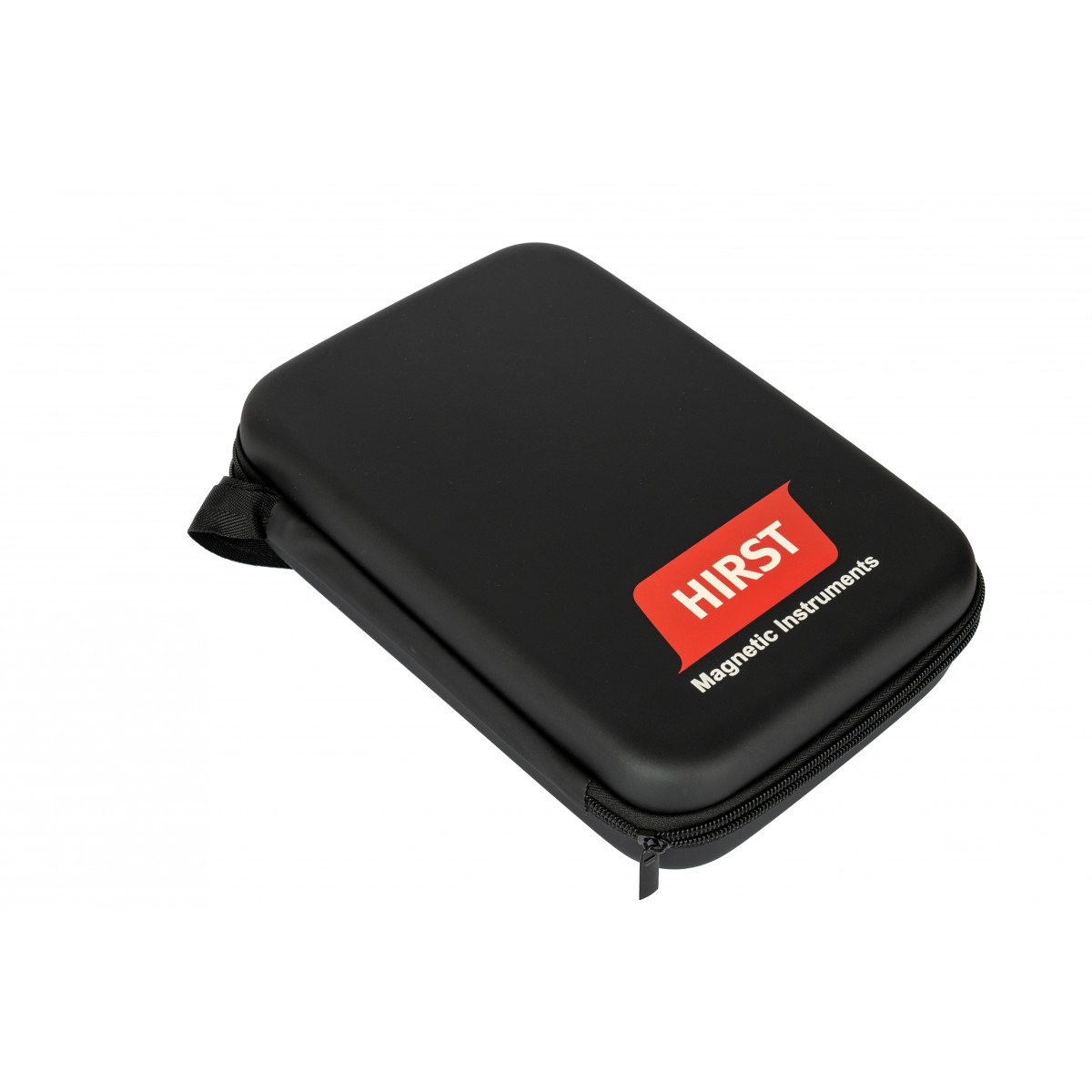

- Carry case.
| Accuracy | |
| Accuracy Single Axis (Bx, By, Bz) | Better than ±1% calibrated to standards traceable to the NPL National Physical Laboratory (UK) up to 0.2 T. At greater fields, better than ±2% on each axis |
| Accuracy total field magnitude (B) | Better than ±2% up to 0.2 T. At greater fields, better than ±4% on B |
| Measurement ranges | AUTO ranging for ease of operation |
| Operational ranges | |
| Frequency Range | Static field (DC) and AC measurements (AC-PK, AC-RMS :3Hz to 350Hz) |
| Full Specifications | |

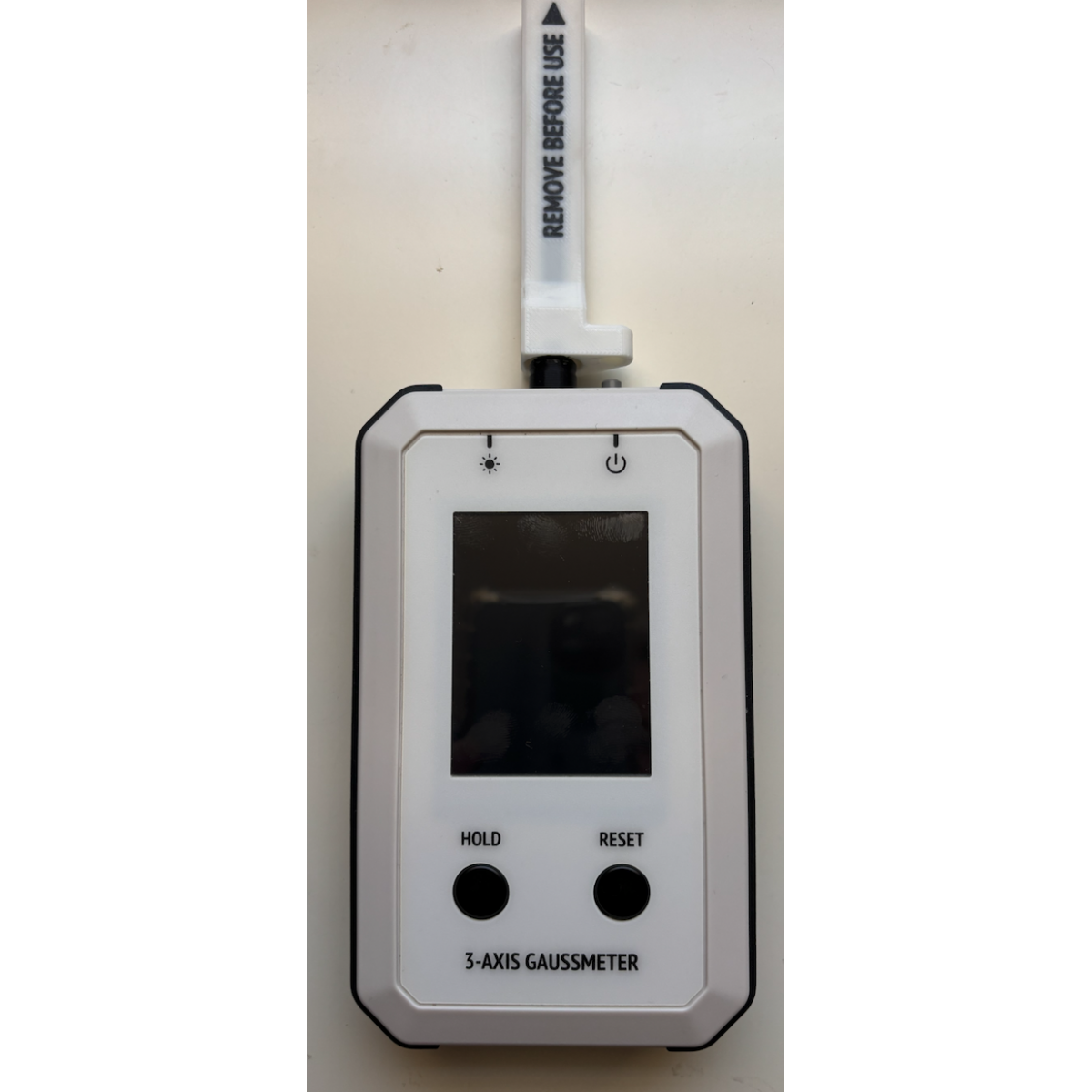

| Colours and materials | Durable white ABS plastic case with black grip side strips and a removable protective cap probe cap |

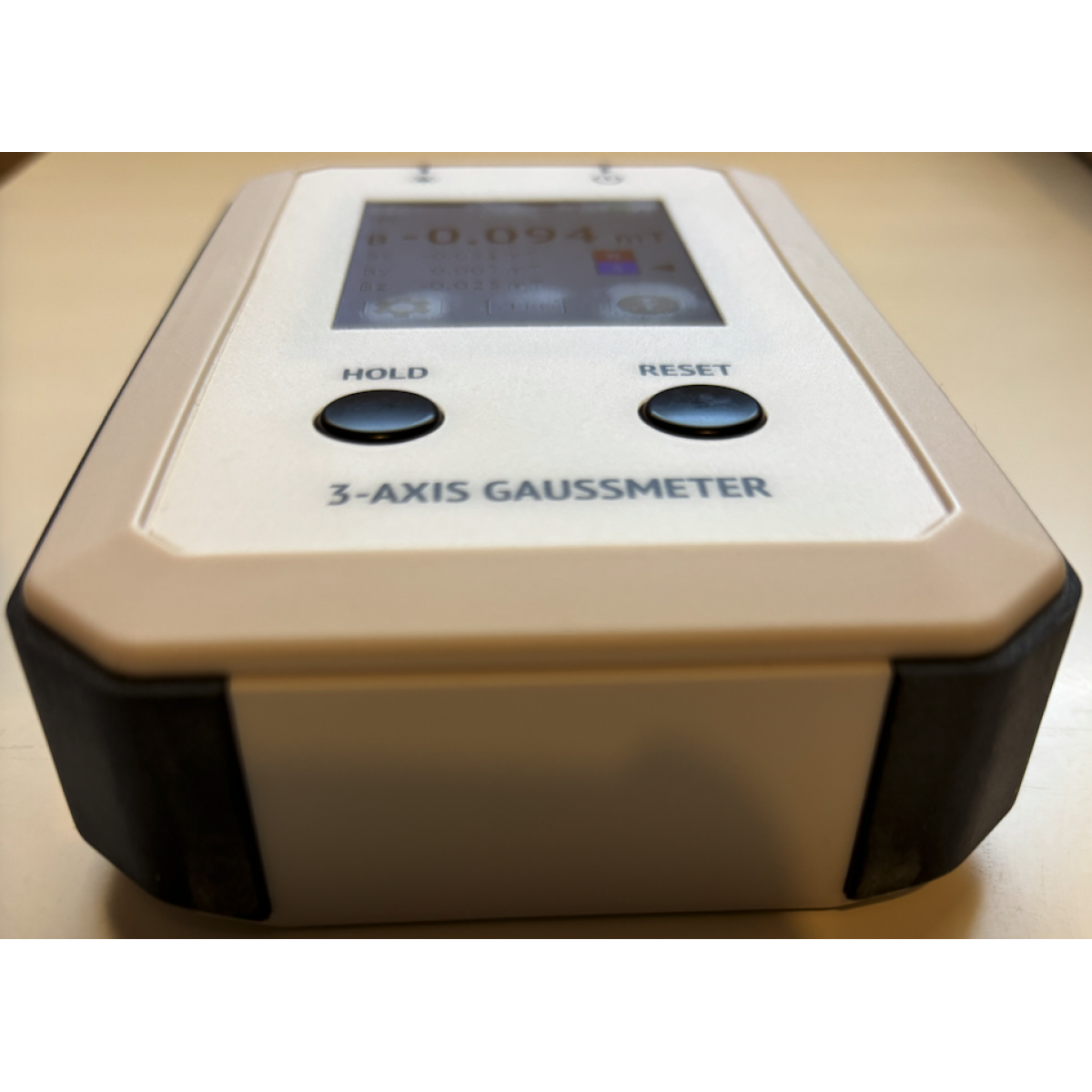

| Connectivity | None |

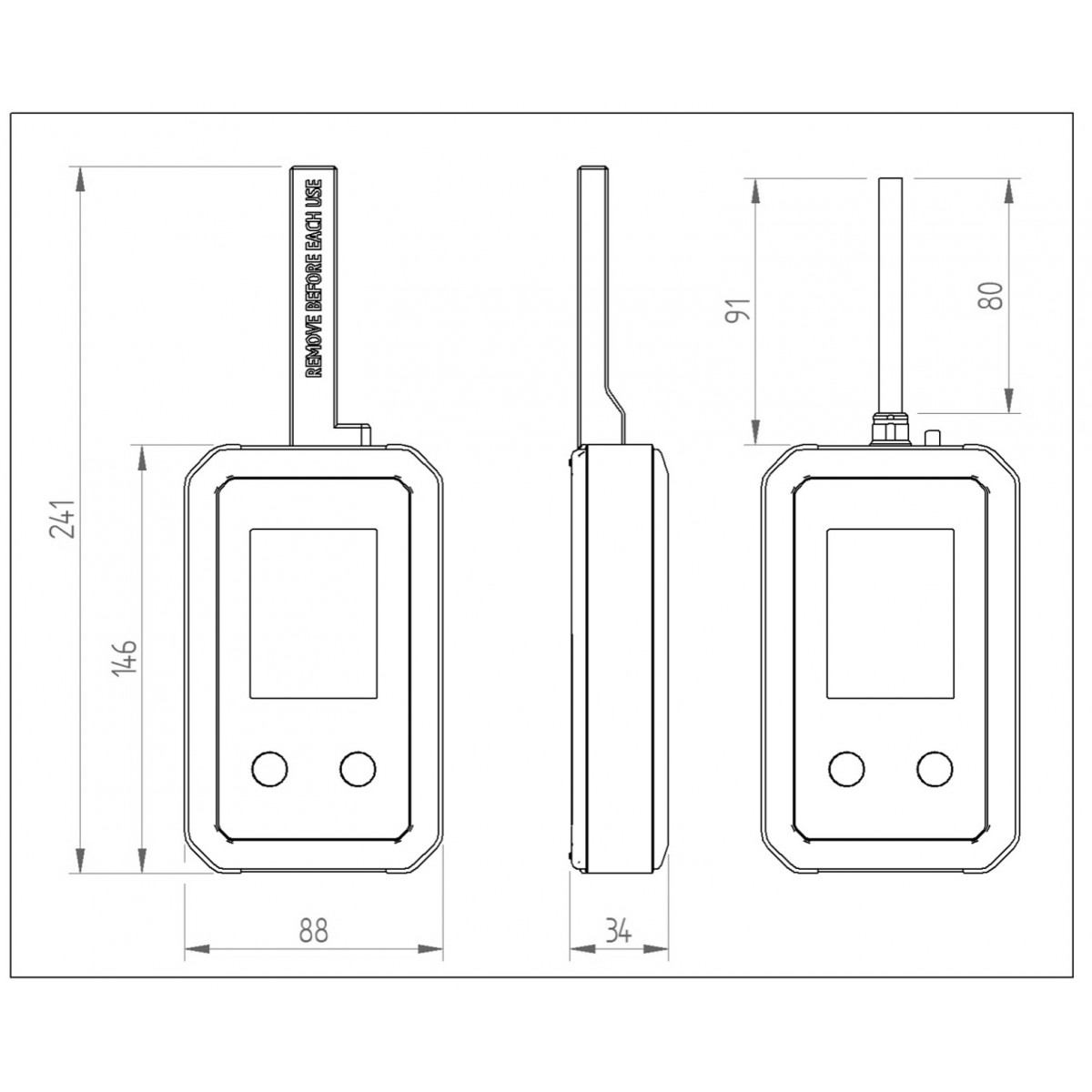

| Dimensions / Weight | 241 x 88 x 34 mm / 255g, excluding batteries, approx. 360g including batteries |
| Max. Display Resolution | Tesla, Gauss and Oersted (Oe) (1mT = 10 Gauss = 10 Oe) |
| Measurement modes | DC, (AC-Peak (with AC-Peak-Max), AC-RMS (with AC-RMS-Max) all with Min and Max |
| Power | 3 non-rechargeable primary lithium AA batteries to provide up to 36-hour continuous measurement time, other AA 1.5V batteries may be used also |
| Recommended Probe Tip Operating Range | 0ºC to 40ºC |
| Typical Repeatability | Better than 0.5% |
| Units | Tesla, Gauss and Oersted (Oe) (1mT = 10 Gauss = 10 Oe) |
| Display Rate | 1 reading per second, HOLD function |

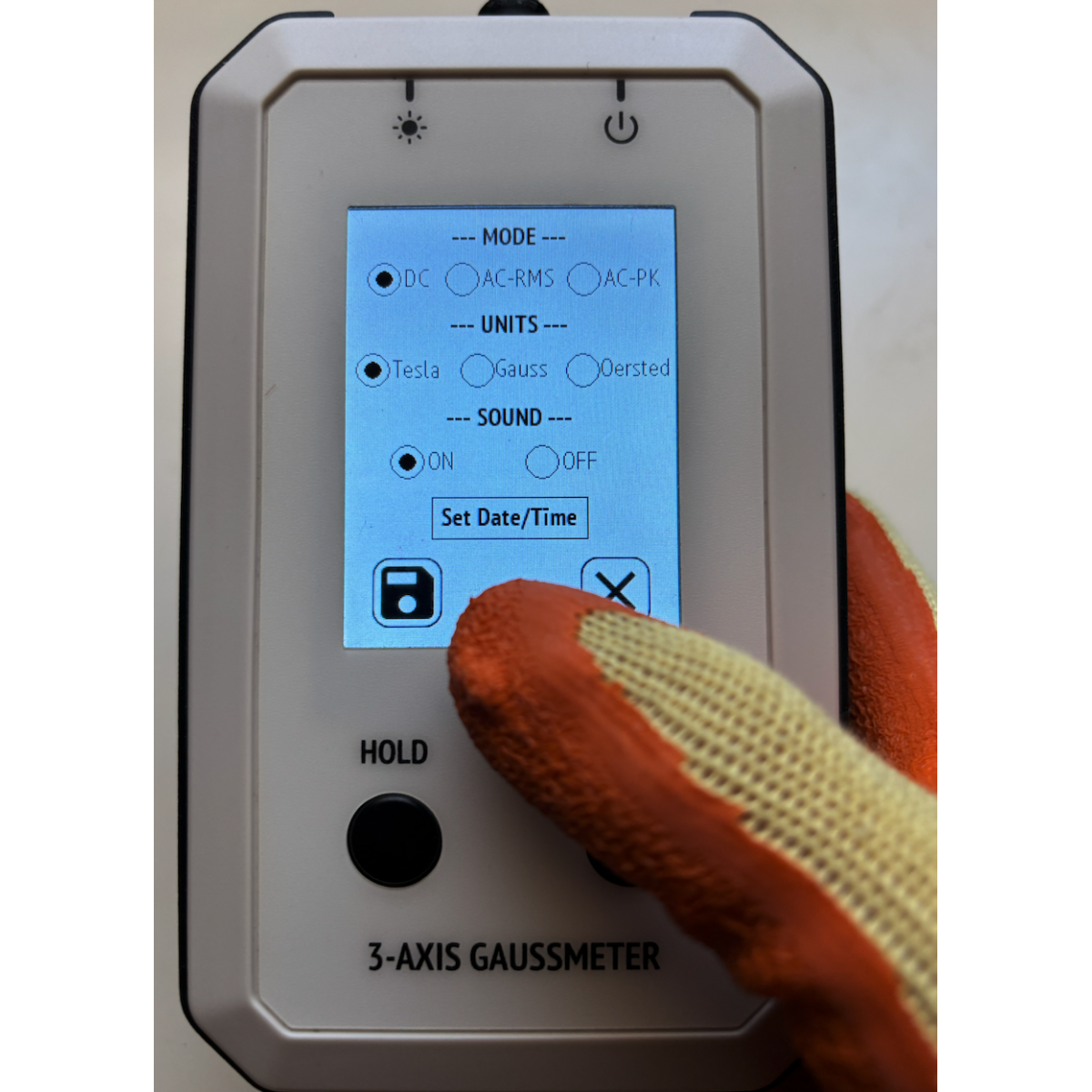

| Display | 2.4” multi-colour 320x240 px plus backlight resistive touch screen for set up (can be used with gloves) |
| Temperature Coefficient | Compensated, displays 3 axis Hall element temperature |
| Optimum Operating Temperature | 5ºC to 40ºC |
| Optimum Storage Temperature | 5 ºC to 40ºC |

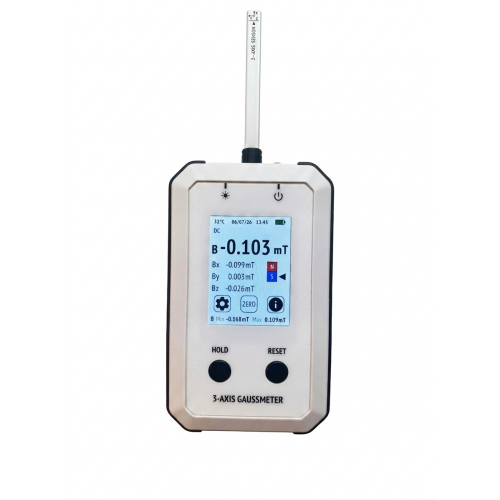

GML9-3 Hand-Held 3-axis Gaussmeter / Teslameter
- Brand: Hirst Magnetic Instruments Ltd.
- Product Code: GML9-3
-
£860.00 + VAT* + Shipping
* Where applicable
